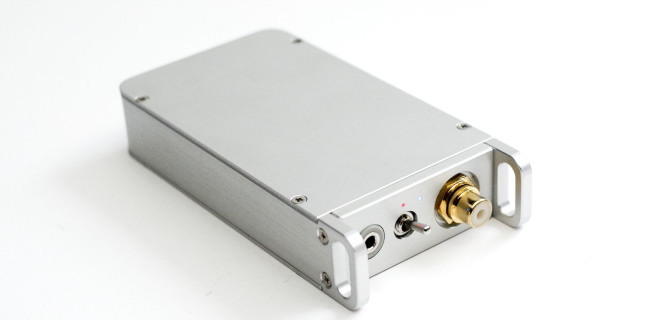

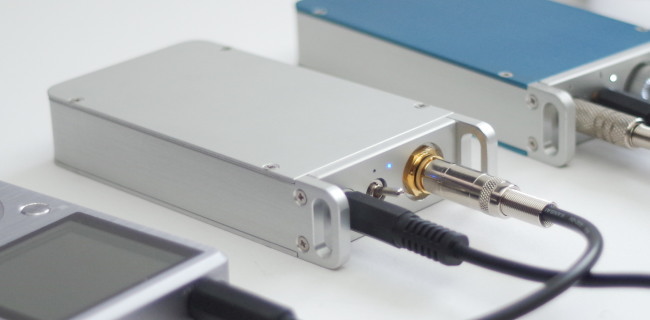

NOSDAC Type1 ノンオーバーサンプリングD/Aコンバータ。

NOSDAC Type1 Pure R2R NOSDAC with Passive Analog LPF.


SUMALLY

  • ●R2R (resistor ladder method).

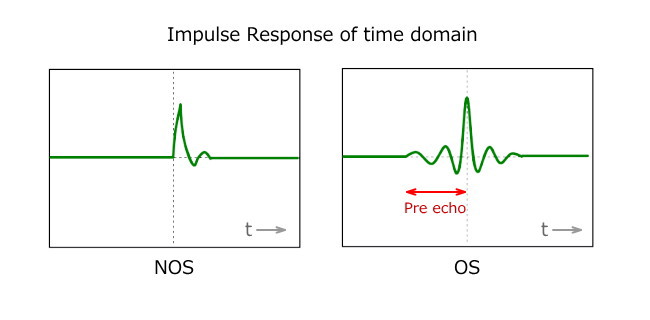

  • ●No Pre-Echo used in non-oversampling
  • ●Butterworth LPF that Stable group delay
  • ●Able to Change to Cut-off freq of LPF
  • ●Separated digital/analog board
  • ●4 mm thickness solid aluminium frame
  • ●Low jitter re-clock by precision Quartz
  • ●Copper foil CNC shaving board
  • ●Radiation noise suppression
        by the magnetic loss material
  • ●Chargable from USB Bus 5V
  • ●Custom-made leather case. (option)

SPECIFICATION

SIZE
W60 H119 D23 [mm]
WEIGHT
150 [g]
INPUT
75ohm RCA COAX SPDIF
SAMPLING RATE
16bit 48kHz (native)
FREQ RESPONSE
5〜16,000 [Hz] at-3dB
SNR
90 [dB]
DISTORTION+N
0.5 [%] at 1kHz
OUTPUT IMPEDANCE
100k [Ω]
BATTERY LIFE
Li-ion(006P) 7 [h]
